Product Description

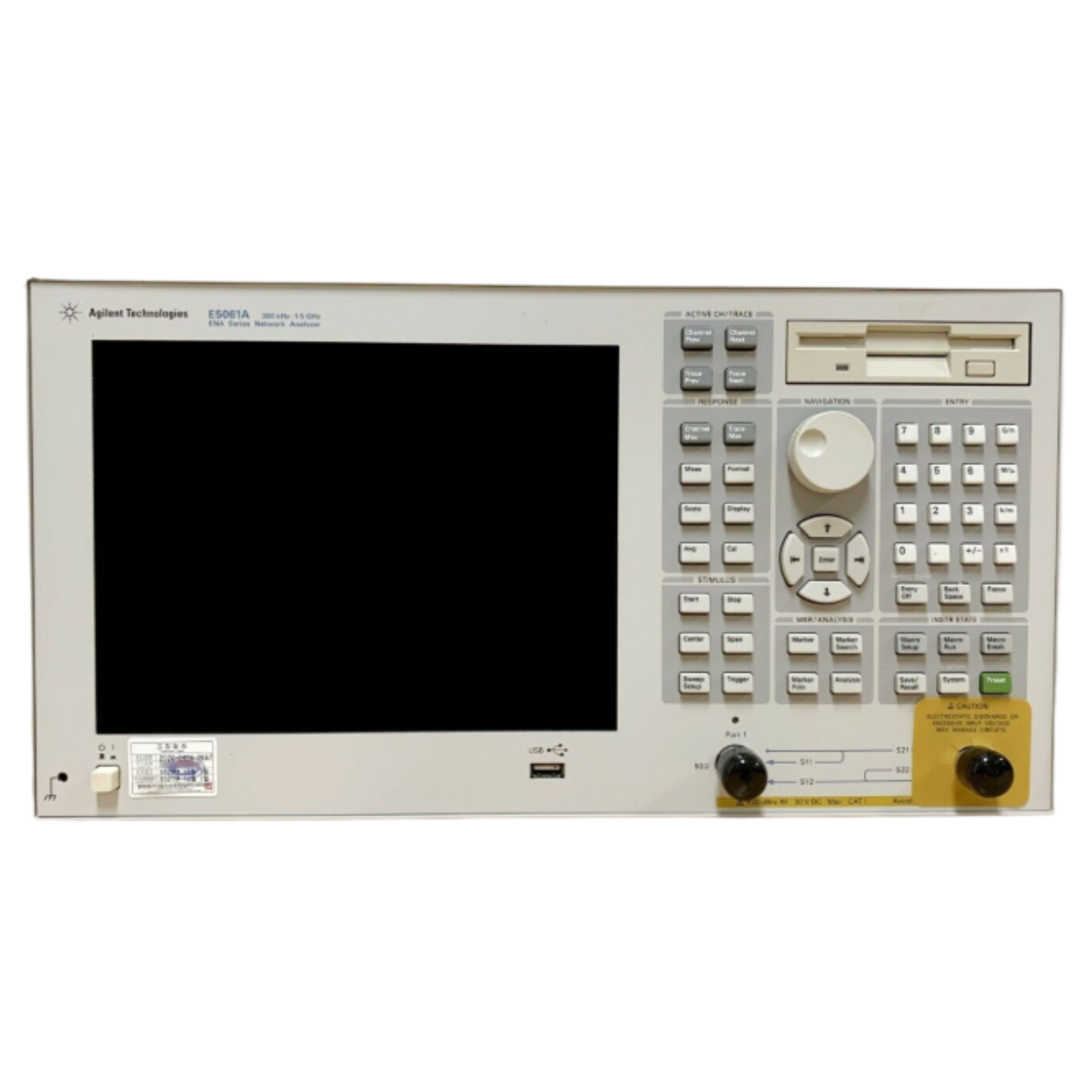

The Agilent E5061A Network Analyzer is a high-performance instrument designed for S-parameter measurement, impedance analysis, and RF/microwave characterization. Ideal for engineers and technicians, it provides accurate measurements for component, circuit, and system-level testing.
Engineered for laboratory and production environments, the E5061A supports broad frequency ranges, high dynamic range, and fast measurement speed, making it suitable for evaluating filters, amplifiers, antennas, and other RF devices. Its intuitive user interface, advanced analysis functions, and robust hardware design ensure reliable and repeatable results.
With Agilent’s proven precision and stability, the E5061A network analyzer is a trusted tool for research, development, and manufacturing applications requiring high-fidelity RF and microwave measurements.
Key Features
High-precision S-parameter measurement
Impedance and network analysis capabilities
Wide frequency range for RF and microwave testing
Fast measurement speed with high dynamic range
Ideal for component, circuit, and system-level testing
Laboratory and production-ready design
Intuitive interface for efficient operation
Reliable and repeatable measurement performance
Suitable for filters, amplifiers, and antennas
Trusted Agilent network analyzer technology
Specifications Table
| Specification | Details |
|---|---|
| Model | Agilent E5061A |
| Instrument Type | Network Analyzer |
| Measurement Type | S-parameters, Impedance |
| Frequency Range | RF and Microwave (depends on configuration) |
| Applications | RF component, circuit, and system testing |
| Dynamic Range | High dynamic range for accurate measurements |
| Operation | Bench-top laboratory instrument |
| Interface | Integrated display and controls |
| Use Environment | R&D and production labs |
| Manufacturer | Agilent Technologies |
The Agilent E5061A network analyzer provides high-precision RF and microwave measurements, including S-parameters and impedance analysis. Designed for laboratory and production testing, it ensures accurate, repeatable performance for engineers working on filters, amplifiers, antennas, and complex RF devices.
