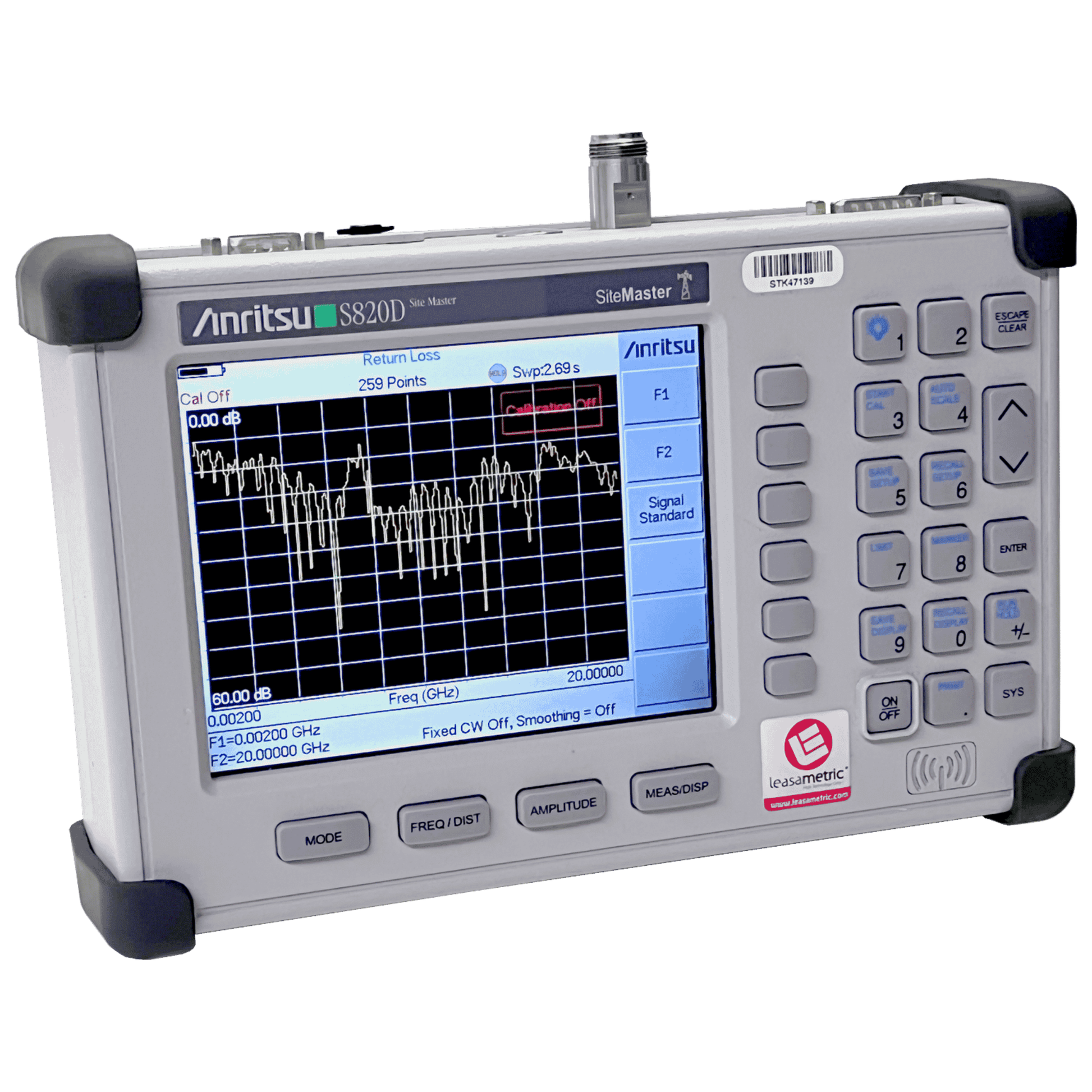

Anritsu S820D Microwave Site Master
Anritsu S820D Microwave Site Master
Couldn't load pickup availability
Product Description
The Anritsu S820D Microwave Site Master is a high-performance microwave cable and antenna analyzer built for advanced RF, radar, satellite, and microwave communication systems. Designed for engineers who require exceptional accuracy across high frequencies, the S820D excels in diagnosing VSWR, Return Loss, DTF, Cable Faults, and Line Sweep issues with unmatched precision.
Its rugged portable design, fast sweep speed, and wide dynamic range make it an essential tool for field technicians working on microwave backhaul, military radar, aviation systems, satellite links, and point-to-point microwave networks.
Key Features
High-frequency microwave Site Master analyzer
Wideband VSWR, Return Loss & DTF measurement capability
Exceptional accuracy across microwave frequency ranges
Rugged, field-ready portable design
Fast sweep speed with high dynamic range
Ideal for radar, satellite, aviation, and microwave backhaul links
Outdoor-readable high-brightness LCD screen
Long-life field battery performance
USB/PC connectivity for data storage and reporting
Advanced fault detection for cables, antennas, and feedline systems
Specifications Table
| Specification | Details |
|---|---|
| Model | Anritsu S820D |
| Type | Microwave Cable & Antenna Analyzer |
| Manufacturer | Anritsu |
| Frequency Range | Typically up to 20 GHz (model dependent) |
| Measurements | VSWR, Return Loss, DTF, Fault Location, Line Sweep |
| Applications | Microwave backhaul, radar, satellite, military RF systems |
| Display | High-contrast outdoor-viewable LCD |
| Interfaces | USB, PC Software Compatible |
| Battery Life | Long-lasting rechargeable pack |
| Housing | Rugged, shock-resistant portable chassis |
| Weight (lbs) | ~6 lbs |
| Category | Microwave RF Test Equipment |
The Anritsu S820D Microwave Site Master is a high-frequency cable and antenna analyzer for microwave, radar, satellite, and RF networks. Provides precise VSWR, Return Loss, and DTF testing for professional field diagnostics.
