Product Description

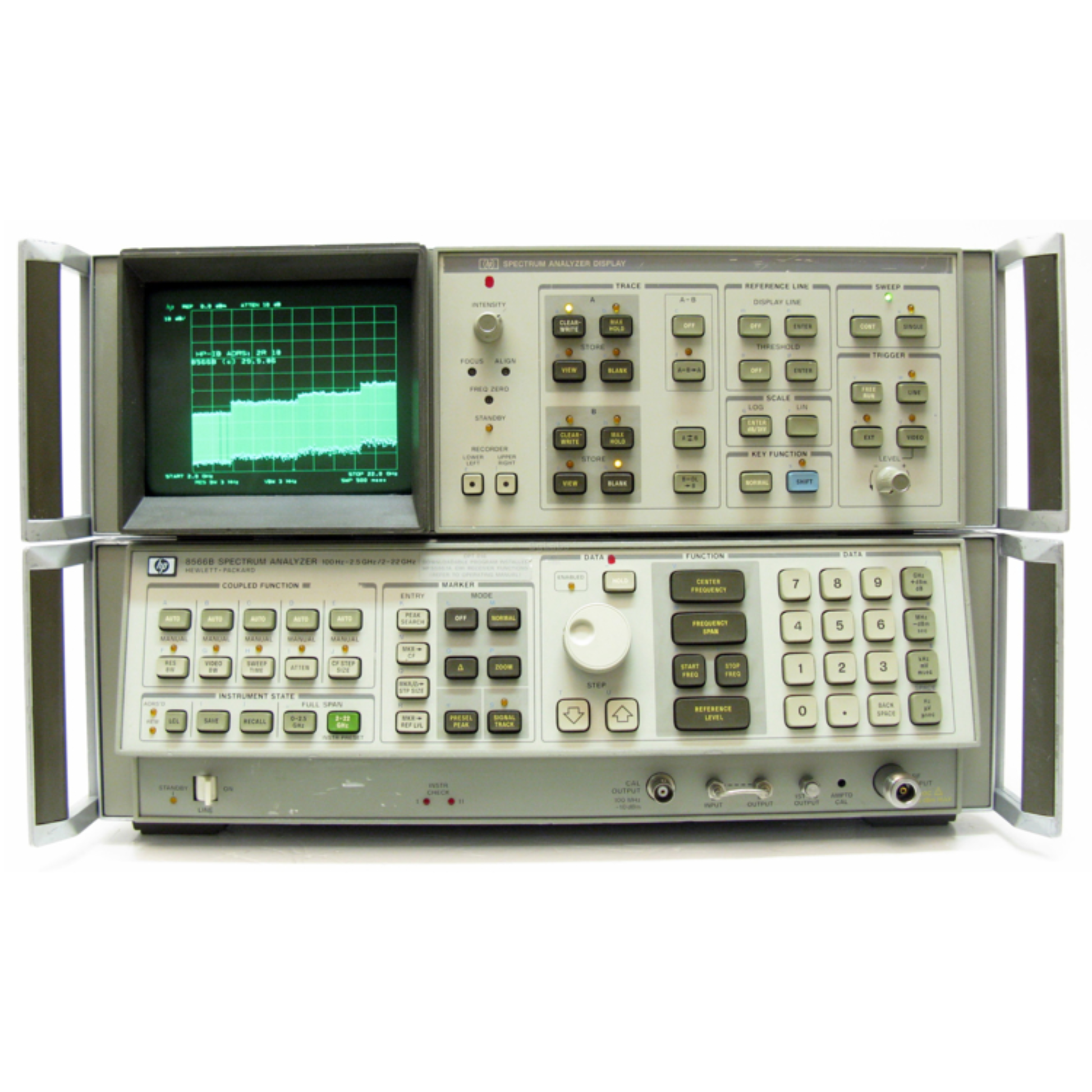

The Hewlett Packard 8566B Spectrum Analyzer is a high-performance RF and microwave spectrum analysis system designed for advanced signal measurement in laboratories, R&D facilities, and production environments. Renowned for its wide frequency coverage and modular architecture, the 8566B is widely used in telecommunications, radar, EMC testing, and microwave engineering.
The system consists of a display unit and RF section, enabling flexible configuration and high dynamic range measurements across a broad frequency span. The HP 8566B delivers accurate spectrum visualization, precise amplitude measurement, and stable frequency performance, making it ideal for characterizing transmitters, receivers, oscillators, and RF components.
Built with Hewlett Packard’s legendary measurement quality, the 8566B remains a trusted solution for engineers requiring reliable, high-precision spectrum analysis.
Key Features
Professional RF and microwave spectrum analyzer
Wide frequency coverage with modular RF sections
High dynamic range and measurement accuracy
Suitable for telecom and radar applications
Excellent frequency stability and resolution
Large clear CRT display unit
Ideal for laboratory and R&D environments
Supports detailed signal characterization
Proven Hewlett Packard measurement reliability
Long-term dependable operation
Specifications Table
| Specification | Details |
|---|---|
| Model | Hewlett Packard 8566B |
| Instrument Type | Spectrum Analyzer System |
| Frequency Coverage | Wideband RF and microwave |
| System Architecture | Display unit + RF section |
| Measurement Type | Spectrum and signal analysis |
| Applications | RF microwave telecom radar |
| Dynamic Range | High dynamic range |
| Form Factor | Bench-top modular system |
| Use Environment | Laboratory and R&D |
| Manufacturer | Hewlett Packard |
The Hewlett Packard 8566B spectrum analyzer delivers wideband RF and microwave signal analysis for professional laboratory applications. Designed for precision measurement, it provides reliable spectrum visualization and high dynamic range for advanced RF testing.
