HP Agilent Keysight N2783B Current Probe 30A 100MHz AC/DC Oscilloscope Probe

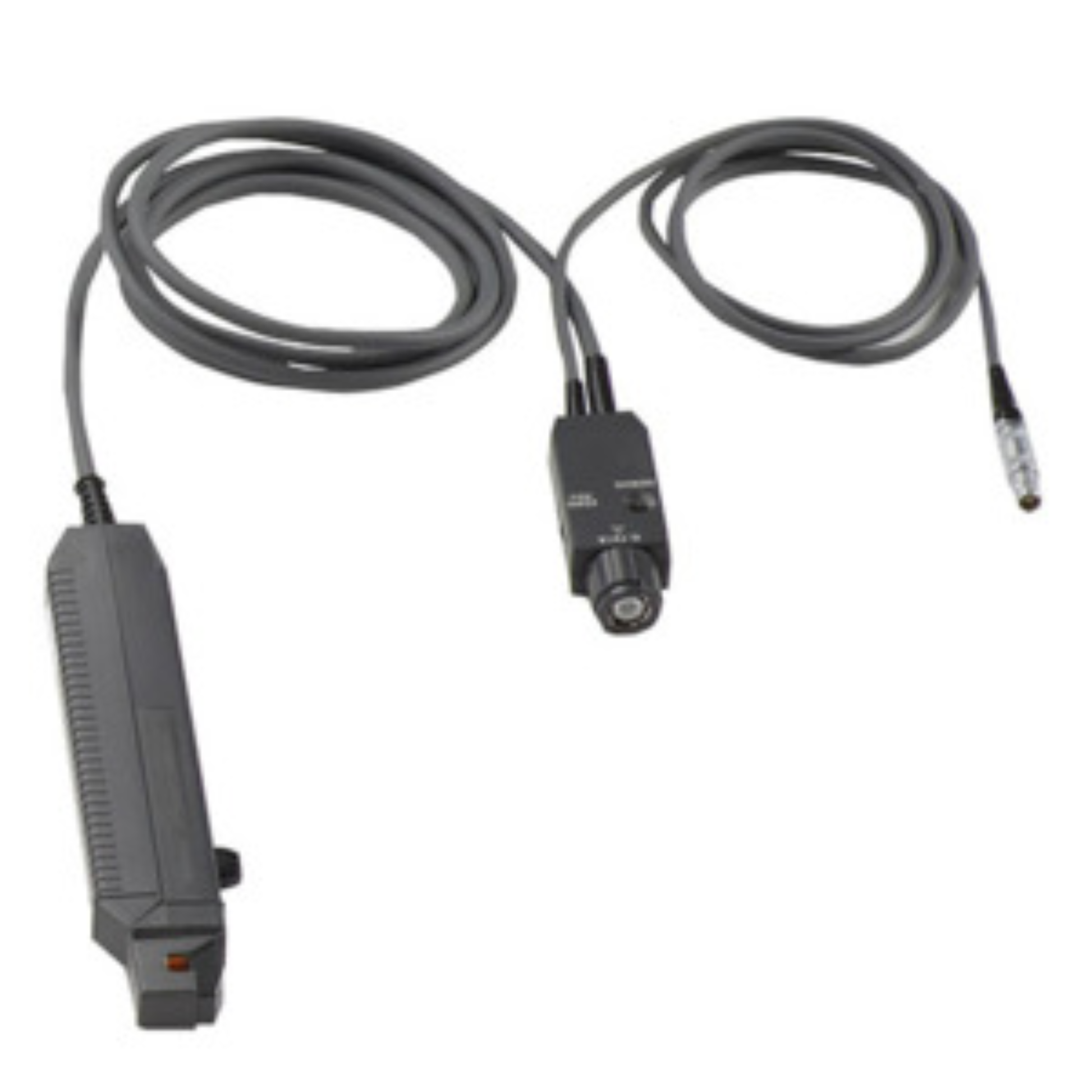

HP Agilent Keysight N2783B Current Probe (30A / 100MHz)

The HP Agilent Keysight N2783B Current Probe is a high-performance AC/DC current measurement solution designed for engineers, technicians, and laboratories requiring precision, speed, and reliability. With a 30A current range and 100MHz bandwidth, this probe is ideal for analyzing fast current signals in modern electronic circuits.

Engineered by Keysight Technologies (formerly HP/Agilent), the N2783B delivers accurate, real-time current measurements when used with oscilloscopes, making it an essential tool for power analysis, circuit design, and troubleshooting.

Key Features & Benefits

Wide Bandwidth (100MHz)
Capture fast transient signals and high-frequency current waveforms with exceptional clarity

30A Current Measurement Range
Suitable for both low and high current applications across various electronic systems

AC/DC Measurement Capability
Accurately measure both alternating and direct current signals

High Sensitivity & Accuracy
Ensures precise readings for detailed signal analysis and diagnostics

Oscilloscope Compatibility
Seamlessly integrates with Keysight, Agilent, and HP oscilloscopes

Clamp-On Design (Non-Intrusive)
Measure current without breaking the circuit, saving time and reducing risk

Ergonomic & Compact Build
Easy to handle, ideal for lab benches and field applications

Technical Specifications

Model: N2783B

Current Range: Up to 30A

Bandwidth: DC to 100MHz

Measurement Type: AC/DC Current

Output: BNC connector for oscilloscope input

Application: High-frequency current analysis

Applications

Power electronics testing

Switching power supply analysis

Embedded system diagnostics

Circuit design and validation

Semiconductor testing

Automotive electronics troubleshooting

Research and development labs

What’s Included

Keysight N2783B Current Probe

Connection cable

User documentation (if available)

Why Choose the N2783B Current Probe?

The N2783B stands out as a reliable and industry-trusted current probe for professionals who demand high accuracy and high-frequency performance. Its ability to measure AC and DC currents without interrupting circuits makes it an indispensable tool for efficient diagnostics and testing.
