High-Accuracy Bench and System DMM
Product Description
The Keithley 2010 is a 7½-digit precision digital multimeter engineered for high-accuracy DC/AC measurements, low-noise characterization, and automated production testing. It provides stable, high-resolution readings for voltage, current, resistance, temperature, and frequency applications. Its low-noise design, advanced filtering, and measurement flexibility make it suitable for R&D labs, metrology setups, and automated test systems. With multiple interface options and built-in math/statistical functions, the 2010 supports complex measurement workflows and high-throughput environments.
Key Features
7½-digit resolution for high-precision measurements
Low-noise input design for microvolt and microamp stability
DC voltage measurements up to 1000 V
AC voltage measurements up to 750 V (true RMS)
DC and AC current measurement capability up to 10 A
True 4-wire resistance from milliohms to 120 MΩ
Temperature measurement support (TC/RTD)
Frequency and period measurement functions
High-speed reading capability for automated test setups
Built-in statistics, math, limit testing, and filtering
GPIB, RS-232, and digital I/O interfaces

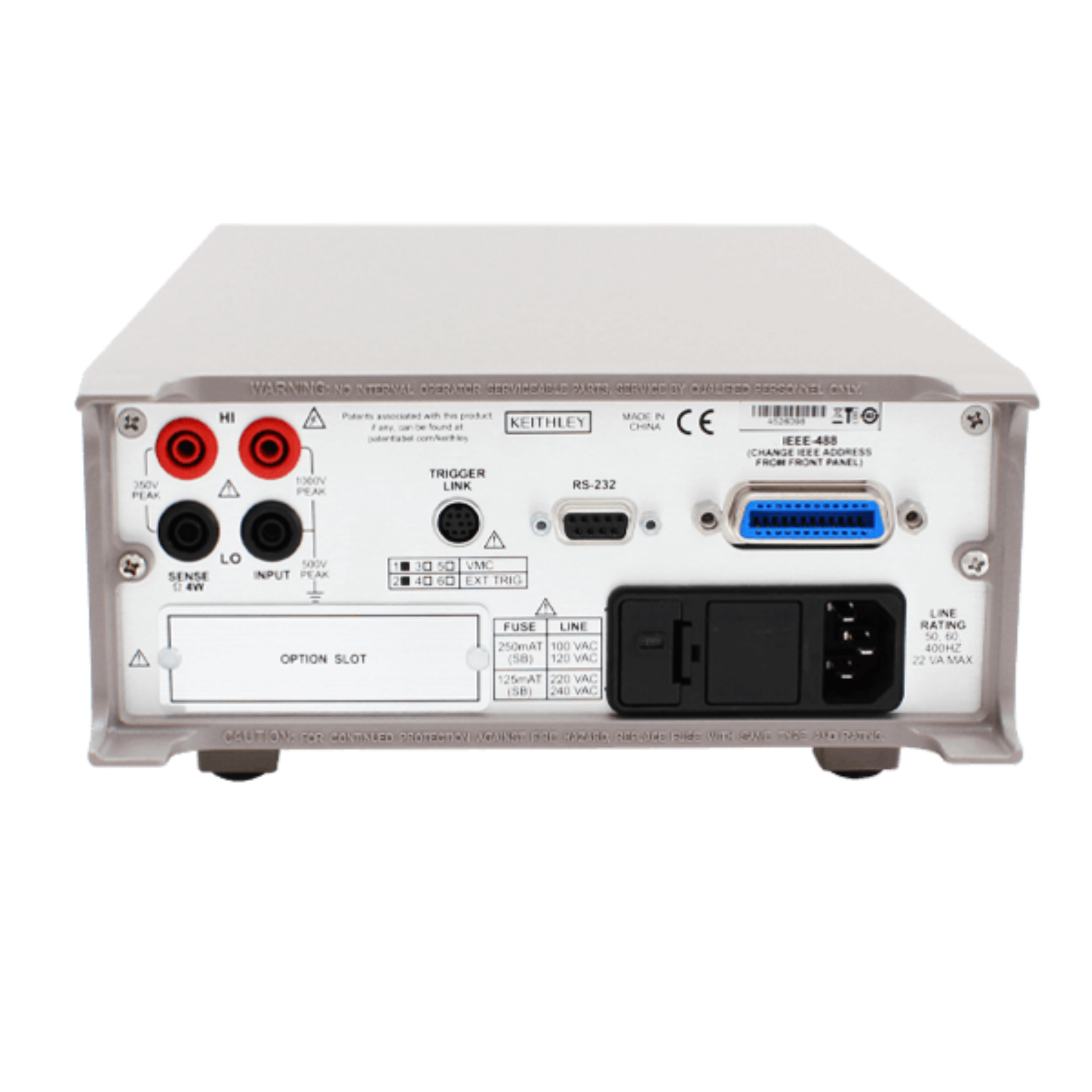

Rear-panel terminals for system integration
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Keithley 2010 |
| Type | 7½-Digit Precision Digital Multimeter |
| Manufacturer | Keithley Instruments / Tektronix |
| Resolution | 7.5 digits |
| Measurement Functions | DCV, ACV, DCI, ACI, 2-wire/4-wire Resistance, Temperature, Frequency, Period |
| DC Voltage Range | 1 µV to 1000 V |
| AC Voltage Range | 1 µV to 750 V (true RMS) |
| DC Current Range | 10 nA to 10 A |
| AC Current Range | 10 nA to 10 A |
| Resistance Range | 10 mΩ to 120 MΩ (4-wire) |
| Temperature Support | Thermocouples and RTDs |
| Frequency Range | Up to 300 kHz |
| Reading Rate | Up to 2000 readings/s (buffered) |
| Interfaces | IEEE-488/GPIB, RS-232, Digital I/O |
| Power Supply | 100–120 V / 200–240 V AC, 50–60 Hz |
| Dimensions (L × W × H) | ~370 × 213 × 90 mm |
| Weight | ~4.5 kg |
| Operating Temperature | 0 °C to 50 °C |
Summary
The Keithley 2010 delivers high-resolution, low-noise measurement performance ideal for precision labs, device characterization, and automated test systems requiring stable, repeatable results.
