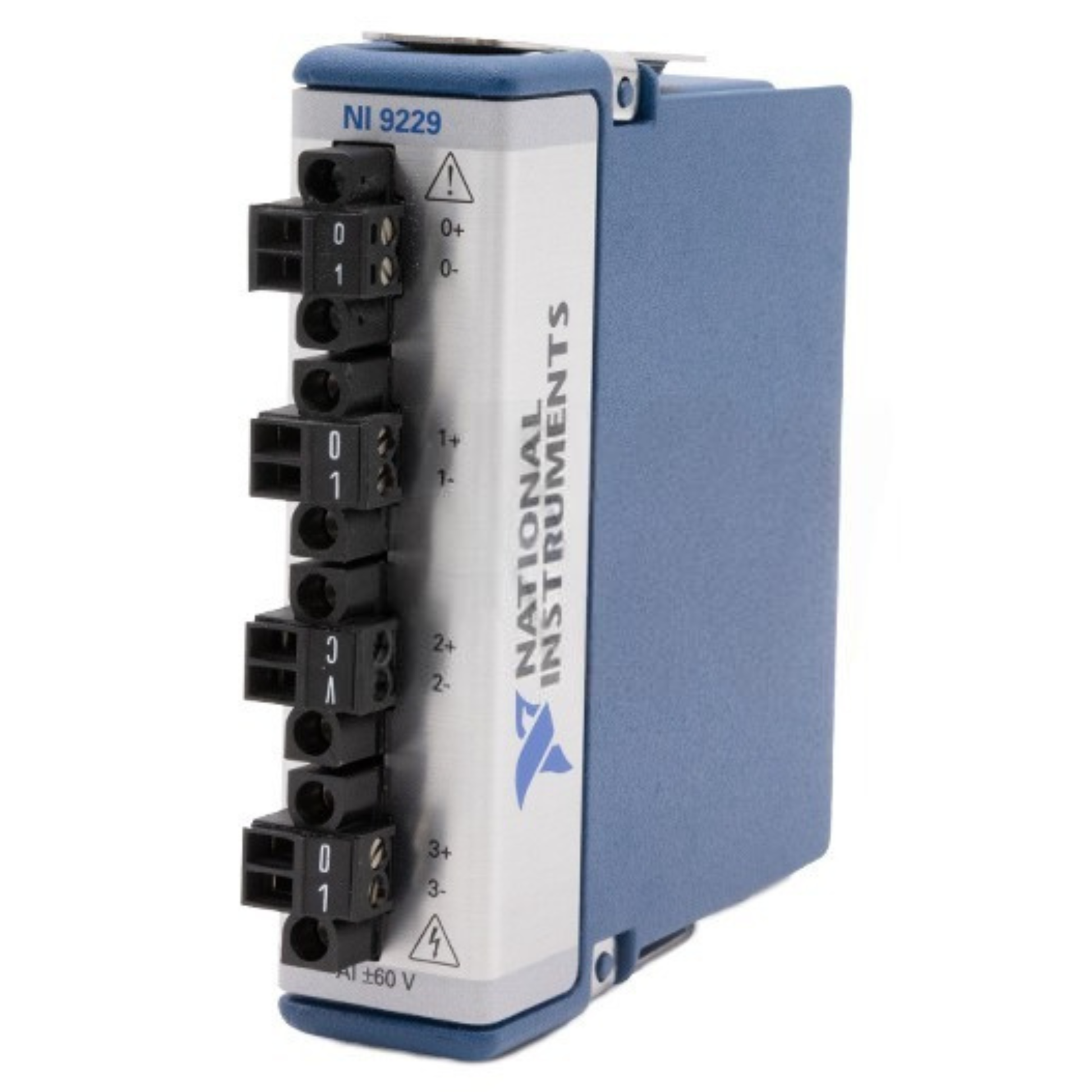

NI 9229 – 4-Channel ±60 V High-Voltage
NI 9229 – 4-Channel ±60 V High-Voltage
Couldn't load pickup availability
Product Description
The NI 9229 is a premium 4-channel, ±60 V analog input module engineered for high-precision, high-voltage measurement applications. Equipped with a 24-bit ADC, the module delivers outstanding signal accuracy, low noise performance, and simultaneous sampling, making it ideal for demanding tasks such as power monitoring, structural testing, industrial measurements, renewable energy systems, and high-voltage data acquisition.
Designed for seamless integration with CompactDAQ (cDAQ) and CompactRIO (cRIO) platforms, the NI 9229 provides reliable, isolated, and stable performance in harsh field and laboratory environments. Its rugged design, wide temperature tolerance, and NI-DAQmx support ensure smooth setup, fast configuration, and long-term operational reliability.
Key Features
4 simultaneous analog input channels
High-voltage ±60 V input range
24-bit high-resolution ADC for superior accuracy
High sample rate: 50 kS/s per channel
Channel-to-channel isolation for enhanced safety
Compatible with CompactDAQ and CompactRIO systems
Ideal for power analysis, structural monitoring, industrial DAQ, and high-voltage sensors
Rugged, field-ready design for long-term durability
Technical Specification Table
| Specification | Details |
|---|---|
| Channels | 4 Analog Inputs (Simultaneous) |
| Input Range | ±60 V |
| Resolution | 24-bit |
| Max Sample Rate | 50 kS/s per channel |
| Input Coupling | DC |
| Isolation | Channel-to-Channel |
| Connector Type | 10-position screw terminal |
| Compatibility | cDAQ, cRIO |
| Operating Temperature | –40 °C to 70 °C |
| Applications | Power quality, high-voltage measurement, structural testing |
Get the NI 9229 4-Channel ±60 V, 24-bit analog input module for high-accuracy, high-voltage data acquisition. Perfect for power monitoring, industrial DAQ, structural testing, and high-resolution voltage measurements. Fully compatible with cDAQ and cRIO systems.
