Product Description

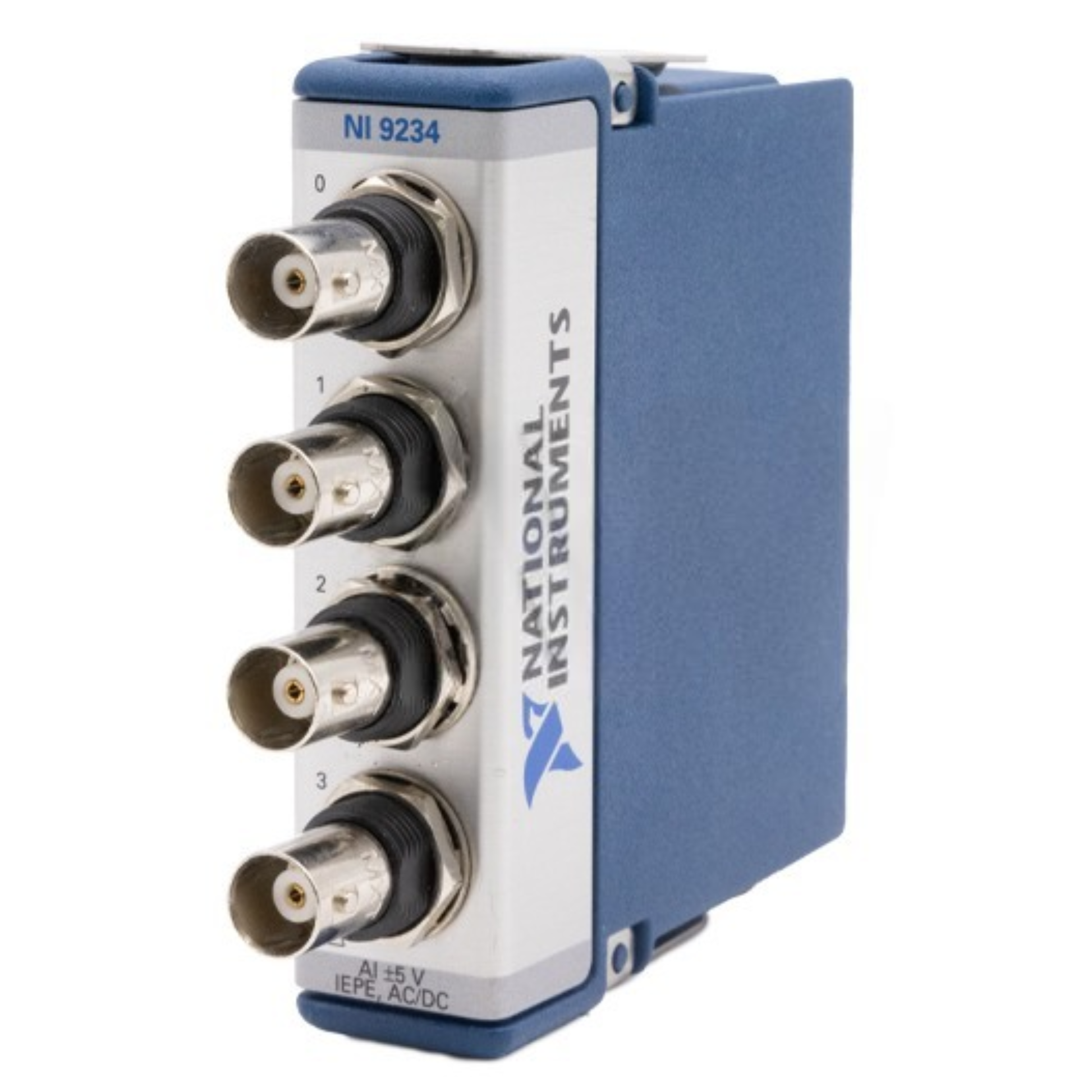

The NI 9234 is a high-performance 4-channel sound and vibration input module engineered for precise dynamic signal acquisition in demanding industrial and research environments. Designed for NI CompactDAQ (cDAQ) and CompactRIO (cRIO) systems, the NI 9234 offers 24-bit resolution, IEPE/ICP sensor compatibility, and an impressive sampling rate for accurate measurements of vibration, noise, and acoustic signals.

With built-in IEPE excitation, the NI 9234 supports accelerometers, microphones, and other dynamic sensors commonly used in vibration testing, NVH studies, and machinery diagnostics. Its wide bandwidth and low noise floor make it ideal for structural analysis, rotating machinery testing, predictive maintenance, and environmental noise studies.

The NI 9234 provides a robust, reliable platform for engineers performing dynamic data acquisition, modal analysis, sound measurement, and industrial condition monitoring.

Key Features

4-channel dynamic signal acquisition

Compatible with IEPE/ICP accelerometers & microphones

24-bit high-resolution ADC

Built-in IEPE excitation per channel

Up to 51.2 kS/s per channel

Perfect for NVH, vibration testing & structural analysis

Seamless integration with cDAQ and cRIO

Wide dynamic range for noise & vibration monitoring

Ideal for rotating machinery diagnostics & industrial condition monitoring

Technical Specifications

The NI 9234 4-channel sound and vibration input module delivers high-accuracy dynamic signal acquisition for NVH testing, structural vibration analysis, modal testing, and acoustic measurement applications. With 24-bit resolution, IEPE excitation, and wide bandwidth, the NI 9234 is ideal for engineers performing industrial vibration diagnostics, machine health monitoring, and environmental noise studies. NI 9234, vibration input module, sound and vibration DAQ, IEPE module, ICP accelerometer input, NI dynamic signal acquisition, cDAQ vibration module, cRIO sound module.
