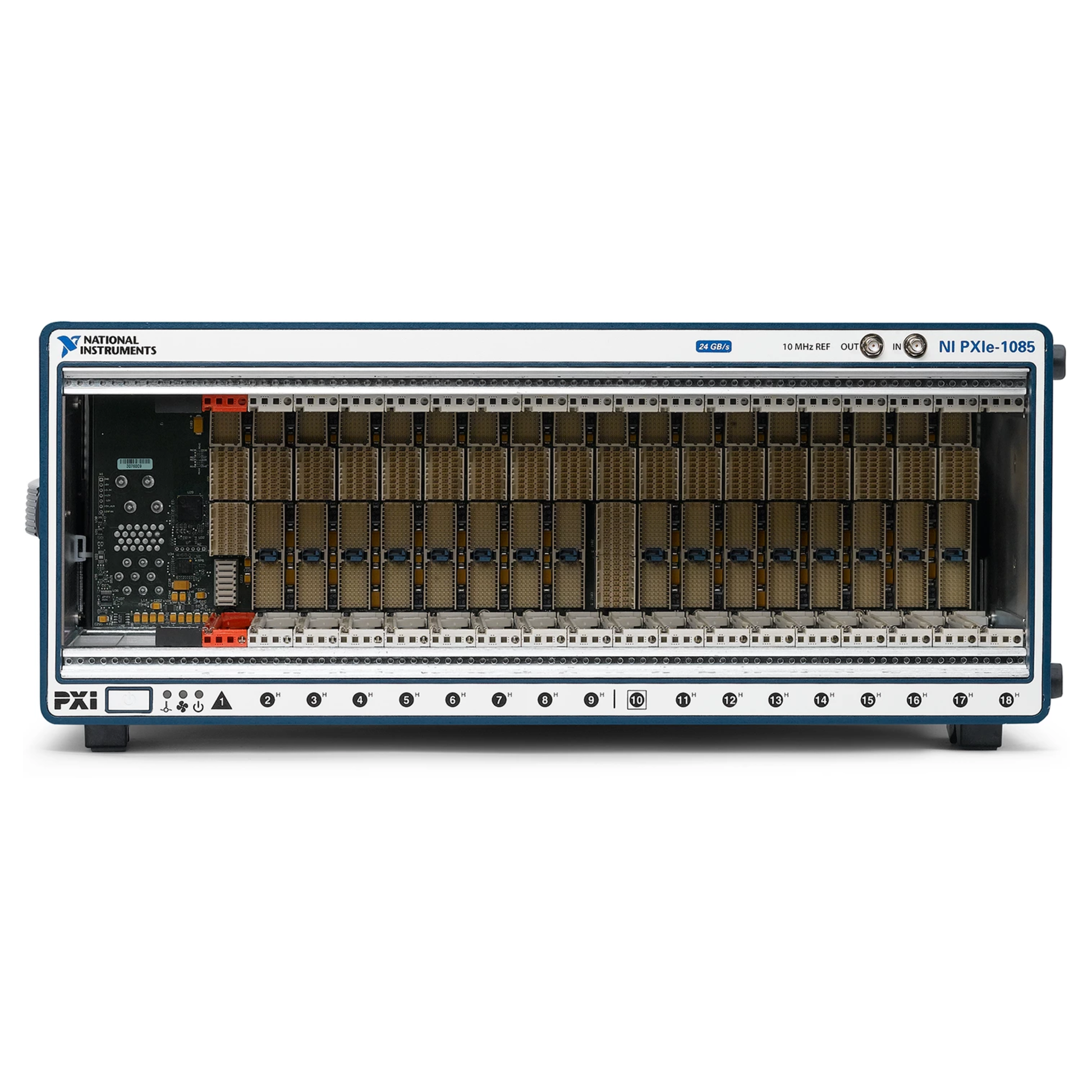

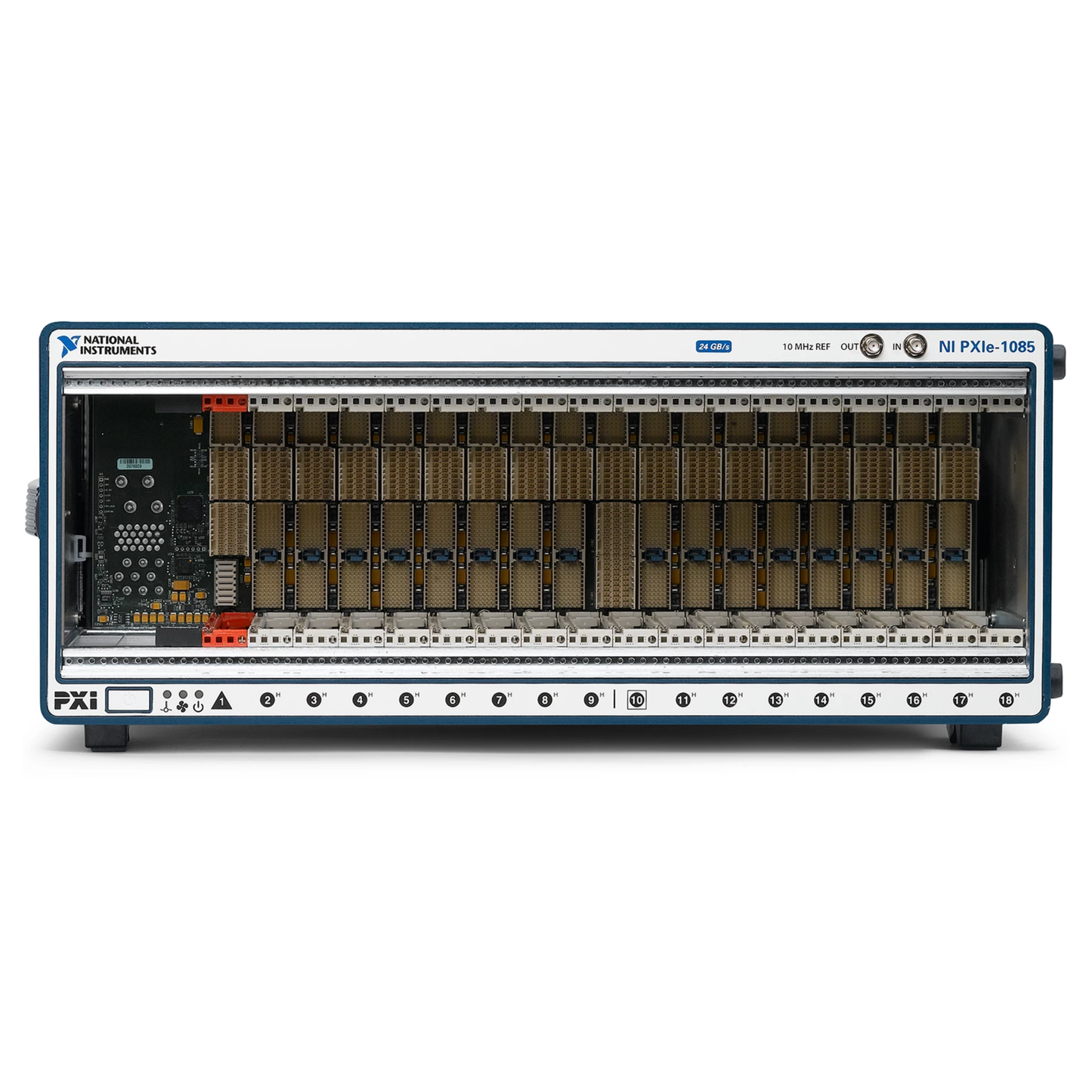

NI PXIe-1085 24 Gb/s PXI Express Chassis

Product Description

The NI PXIe-1085 is a high-performance PXI Express chassis designed for demanding automated test and measurement applications. With a 24 Gb/s system bandwidth, 18 PXI Express slots, and a robust backplane, the PXIe-1085 provides exceptional throughput for high-speed instrumentation, data acquisition, and signal processing tasks.

Engineered for system integrators, research laboratories, and engineers working in aerospace, communications, and electronics testing, the PXIe-1085 ensures reliable operation, low latency, and scalability for complex PXI test systems. Its efficient cooling system, high-power supply, and rugged industrial design make it ideal for 24/7 operation in laboratory and production environments.

The PXIe-1085 chassis supports modular PXI and PXIe instruments, offering flexibility to configure systems for high-performance digital, analog, and mixed-signal applications, maximizing productivity and test accuracy.

Key Features

High-speed 24 Gb/s PXI Express backplane bandwidth

18-slot modular PXI Express chassis

Supports PXI and PXIe hybrid instrument modules

Efficient thermal management and cooling

High-current power supply for demanding modules

Ideal for automated test and measurement systems

Low-latency, high-throughput data performance

Rugged, industrial-grade design for continuous operation

Flexible system integration for digital, analog, and mixed-signal testing

Scalable architecture for growing test requirements

Specifications Table

The NI PXIe-1085 24 Gb/s PXI Express chassis delivers high-speed performance for automated test, measurement, and data acquisition systems. With 18 slots, hybrid PXI/PXIe support, efficient cooling, and rugged industrial design, it is ideal for engineers and labs requiring high-throughput, low-latency modular instrumentation solutions.
