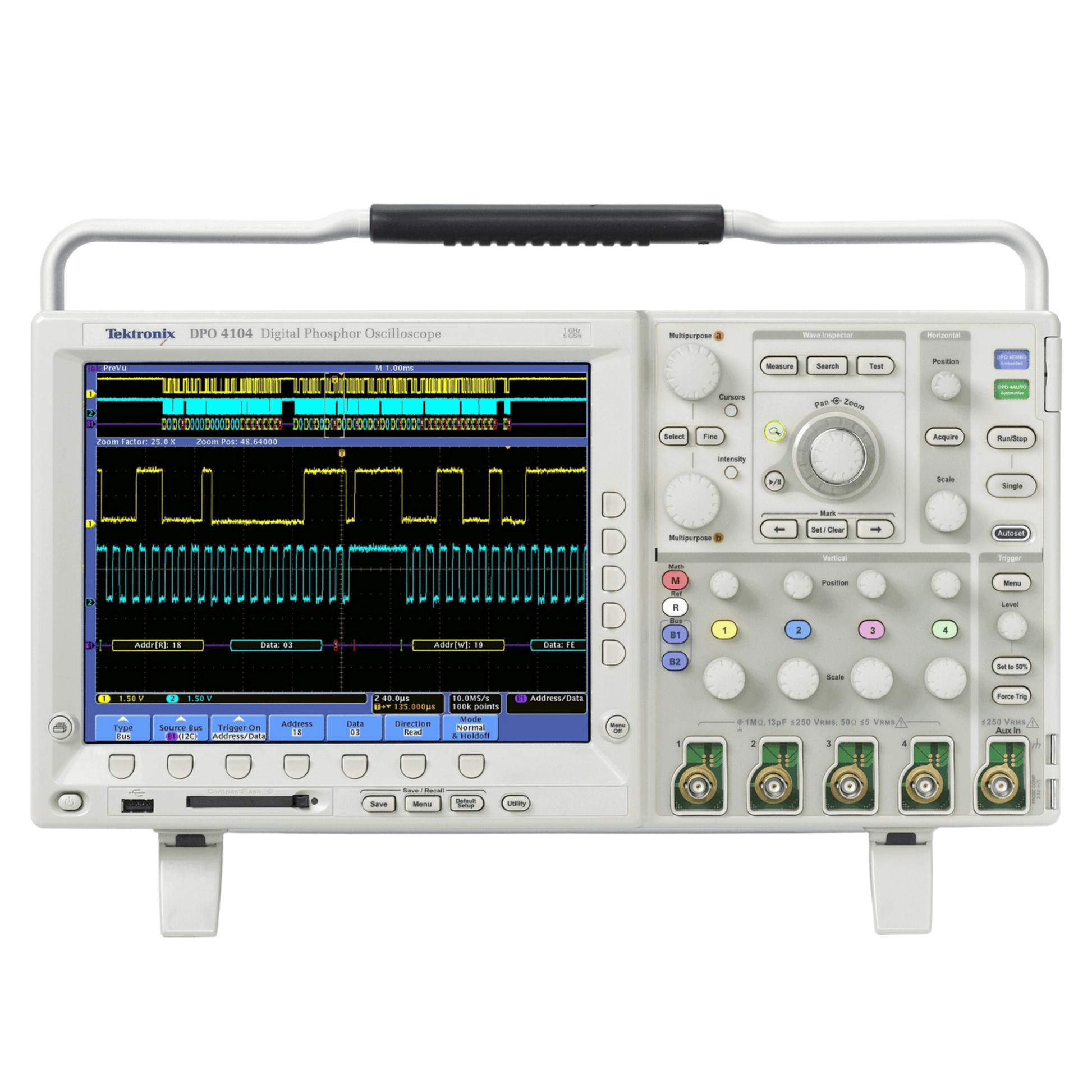

Tektronix DPO4104 Digital Phosphor Oscilloscope

Product Description

The Tektronix DPO4104 Digital Phosphor Oscilloscope is a high-performance test and measurement instrument engineered for engineers working with high-speed digital, analog, and mixed-signal designs. Featuring 1 GHz bandwidth and four input channels, the DPO4104 delivers exceptional signal fidelity, fast waveform capture, and deep analysis capabilities.

Powered by Tektronix Digital Phosphor technology, this oscilloscope captures transient events and rare signal anomalies that conventional scopes may miss. Its fast waveform capture rate, advanced triggering, and comprehensive analysis tools make it ideal for R&D labs, electronics debugging, embedded system development, and high-speed communications testing.

With a large display, intuitive user interface, and robust processing performance, the DPO4104 enables engineers to quickly visualize, analyze, and troubleshoot complex signals with confidence and precision.

Key Features

1 GHz bandwidth for high-speed signal analysis

4 analog input channels for complex measurements

Digital Phosphor Oscilloscope (DPO) technology

Fast waveform capture rate for transient detection

Advanced triggering and analysis capabilities

High signal integrity and low noise performance

Large, high-resolution display for clear visualization

Ideal for digital, analog, and mixed-signal debugging

Reliable bench-top design for lab environments

Trusted Tektronix performance and accuracy

Specifications Table

The Tektronix DPO4104 digital phosphor oscilloscope delivers 1 GHz bandwidth, four channels, and fast waveform capture for advanced signal analysis. Designed for engineers and laboratories, it provides accurate visualization and debugging of high-speed electronic systems.
