Product Description

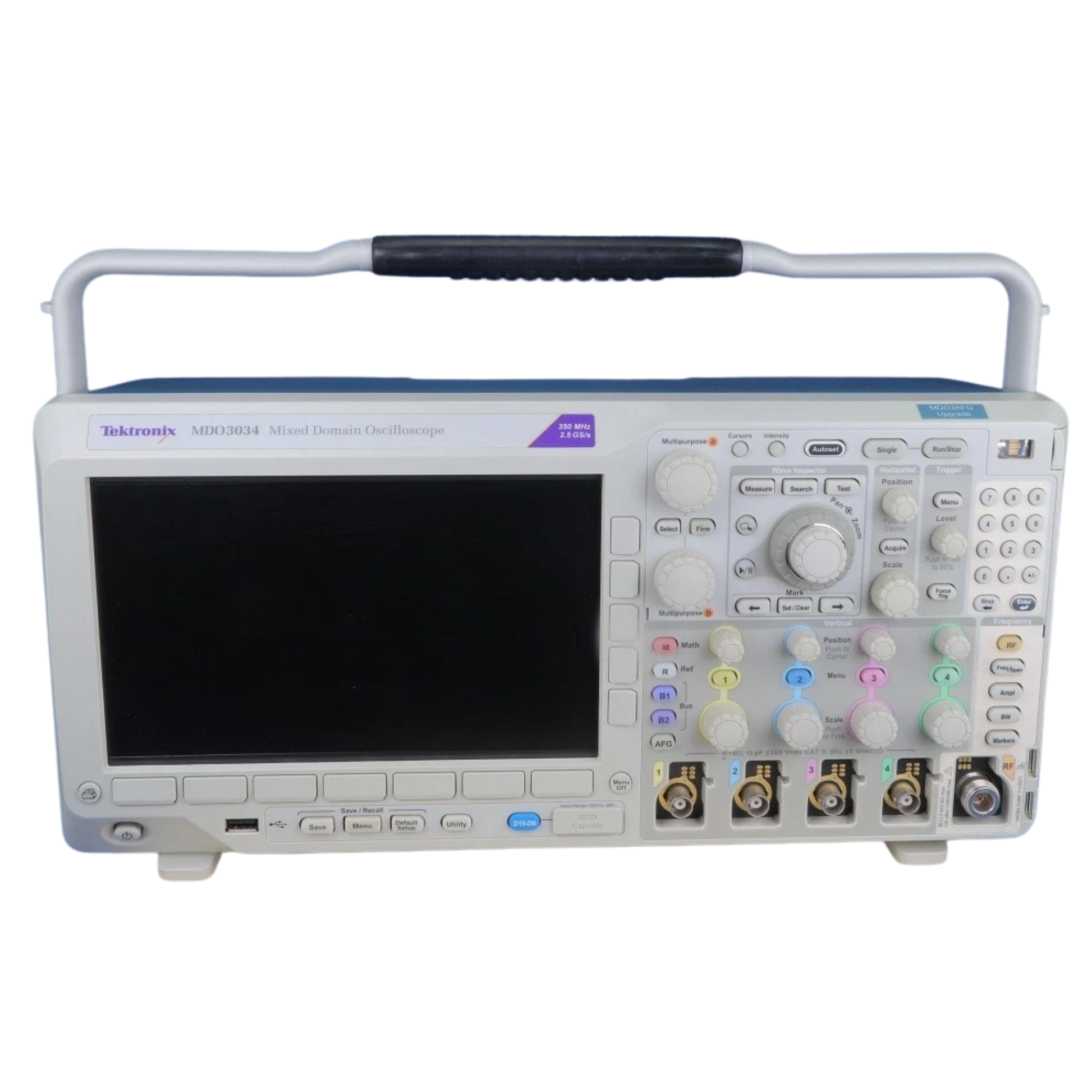

The Tektronix MDO3034 is a powerful mixed-domain oscilloscope combining 350 MHz bandwidth, four analog channels, and built-in spectrum analysis. Designed for engineers and test professionals, it delivers exceptional time- and frequency-domain measurement performance in a single compact instrument. The Tektronix MDO3034 is a versatile 6-in-1 mixed-domain oscilloscope engineered for advanced electronic design, signal analysis, and embedded system debugging. Offering 350 MHz analog bandwidth, four input channels, and a 2.5 GS/s sampling rate, it provides precise waveform capture with deep 10 M-point record length.

The integrated spectrum analyzer enables RF and frequency-domain analysis from 9 kHz up to 350 MHz, with options to extend functionality. The MDO3034 also supports additional modules, including logic analyzer, protocol decoding, arbitrary waveform generation, and digital voltmeter/frequency counter, making it one of the most complete test instruments available.

With a bright 9″ WVGA display, FastAcq™ high-speed waveform capture technology, and TekVPI® probe compatibility, the MDO3034 is ideal for electronics R&D, mixed-signal debugging, RF testing, power electronics, and embedded system development.

Key Features

350 MHz bandwidth across 4 analog channels

2.5 GS/s sample rate per channel

10 M-point deep memory for long waveform capture

Built-in spectrum analyzer (9 kHz–350 MHz)

FastAcq™ high-speed waveform capture

9″ WVGA widescreen display

Upgrade options for logic analyzer, protocol analyzer, AFG, and DVM

TekVPI® probe interface for passive/active/current probes

Compact and rugged bench-top design

Multiple connectivity options: USB, Ethernet, video output, etc.

Technical Specification Table

Tektronix MDO3034 Mixed-Domain Oscilloscope with 350 MHz bandwidth, 4 channels, 2.5 GS/s, integrated spectrum analyzer, and advanced debugging features. Ideal for electronics, embedded systems, RF analysis, and professional test labs.
