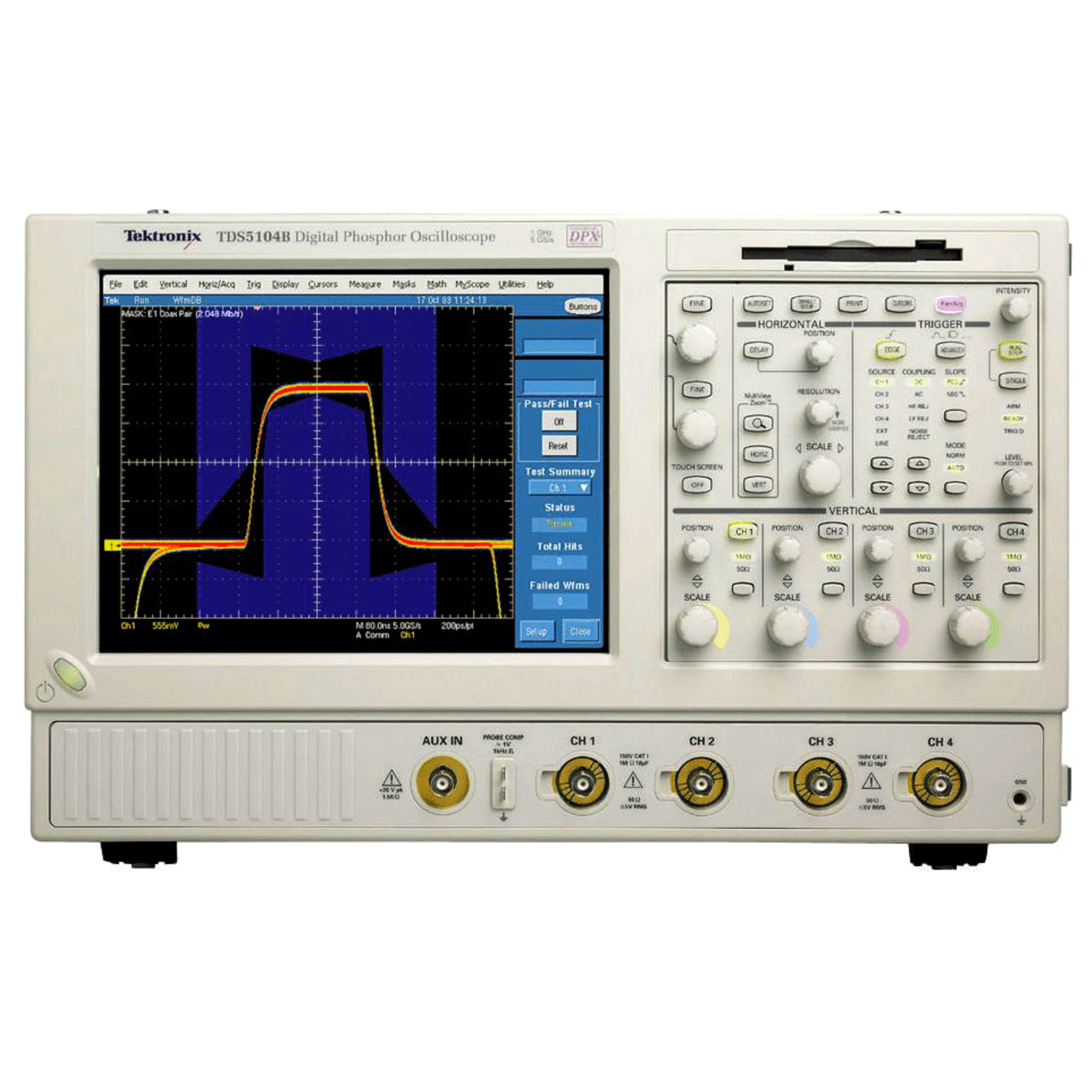

Tektronix TDS5104B Digital Storage Oscilloscope

Product Description

The Tektronix TDS5104B Digital Storage Oscilloscope is a high-end measurement instrument designed for high-speed signal analysis, advanced debugging, and precision electronic validation. Featuring a 1 GHz bandwidth and four analog channels, it is ideal for demanding applications in R&D, telecommunications, aerospace, and high-speed digital design.

Built on Tektronix’s proven TDS5000B Series architecture, the TDS5104B offers fast sampling rates, deep acquisition memory, and advanced triggering capabilities, enabling engineers to accurately capture and analyze complex waveforms. Its robust performance makes it well suited for signal integrity analysis, serial data debugging, and RF-related measurements.

Renowned for accuracy and reliability, the Tektronix TDS5104B remains a trusted oscilloscope for professionals who require high bandwidth and dependable measurement performance.

Key Features

1 GHz bandwidth digital oscilloscope

Four analog input channels

High-speed sampling for fast signals

Deep memory for detailed waveform capture

Advanced triggering and analysis tools

Ideal for high-speed digital and RF testing

Clear high-resolution display

Bench-top professional laboratory design

Reliable long-term operation

Trusted Tektronix measurement accuracy

Specifications Table

The Tektronix TDS5104B digital storage oscilloscope delivers 1 GHz bandwidth and four channels for high-speed signal analysis and debugging. Designed for advanced electronics testing, it provides fast acquisition, deep memory, and precise triggering for professional applications.
